Detachable plate heat exchanger

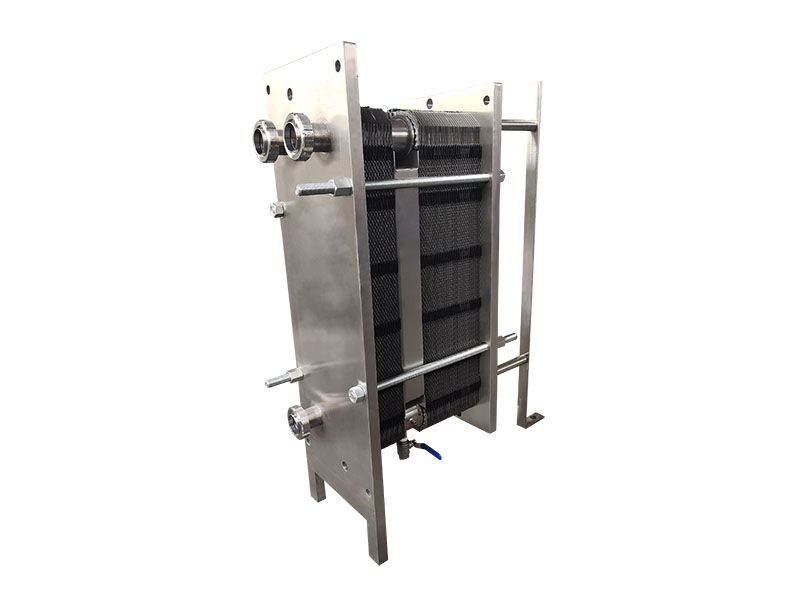

Semi-welded plate heat exchanger

Product advantages
Strong compatibility with a variety of critical media, suitable for media that is eroded by gaskets and high pressure operating media.
        It is easy to disassemble and disassemble, and the plate closed by the gasket can be taken apart for cleaning or cleaning or replacement of the plate group.
        The heat transfer capacity can be easily adjusted by increasing or decreasing the number of plates.
        The fluid has a small amount of liquid retention and responds quickly to changes in operating conditions.
        The special process laser welding seal and high pressure structure design make the sealing performance high and the pressure bearing capacity strong.

Advantages when applied to conventional refrigerant heat exchange conditions
Advanced technology and reliable operation. The secondary heat exchange can be avoided, the cost is low, the heat exchange efficiency is high, and the heat exchange amount is large.
Easy to install and easy to maintain. It can be cleaned and repaired with long service life and low operating cost.
Strong plasticity and flexible adjustment. The amount of heat exchange can be adjusted at will by increasing or decreasing the plate group.

Thermal isolation technology
Jiangsu Bink LSW series semi-welded plate heat exchanger can ensure the complete isolation between the flow channels during the working process. The critical medium flows in the flow channel after welding and seals, and transfers the heat to the common medium on the other side. Without such strict isolation Design, many industrial processes will not be realized.

Unique runner design
The unique flow path design increases the flocculation intensity of the medium flowing into the plate heat exchanger, enhances the heat transfer effect and reduces the corresponding pressure loss. Even if the flow rate of the medium in the heat exchanger is very low, a high heat exchange effect can be obtained. In order to meet the requirements of different working conditions, we have a variety of plate types to choose from.

Application field
Refrigeration and air conditioning and HVAC industry: can be used as evaporator gas superheater, liquid subcooler, heat recovery unit, etc.
Chemical industry: heating, cooling, evaporation, condensation process
Metallurgical industry: rolling mill, continuous casting machine refrigerator lubricating oil cooling, circulating water cooling
Power industry: transformer oil, turbine oil cooling
Light textile paper industry: waste heat, waste heat utilization of waste liquid
Regional central heating: steam-water heating, intermediate heat exchange station, secondary system water heating
Pharmaceutical industry: water for injection, plasma manufacturing

Some product models

Jiangsu Bink BKW Series Laser Semi-welded Plate Heat Exchanger Product Specification Data Sheet

16Bar

25Bar

Standard take-up caliber

Effective heat exchange area of the veneer

Number of assembled plates

Max flow

Plate thickness

Product height

Product width

Plate height

Plate width

Corner hole spacing

Clamping size

m³/h

BKW050-NAXXX

BKW050-NBXXX

DN50

0.12㎡

240

0.6/0.7

920

320

747

248

640*140

N*(3.0+X)

BKW100-NAXXX

BKW100-NBXXX

DN00

0.24㎡

510

145

0.6/0.7

1084

470

871

371

719*225

N*(2.5+X)

BKW150-NAXXX

BKW150-NBXXX

DN150

0.46㎡

470

320

0.6/0.7

1815/1940

610/650

1498

498

1294*298

N*(2.5+X)

Remarks:
1. The above product data is for reference only. The accurate product data is subject to the product design book and product drawings issued by our company.
2. The letter "N" in the product model column indicates the number of undetermined plates; the letter "XXX" indicates undetermined product assembly information.
